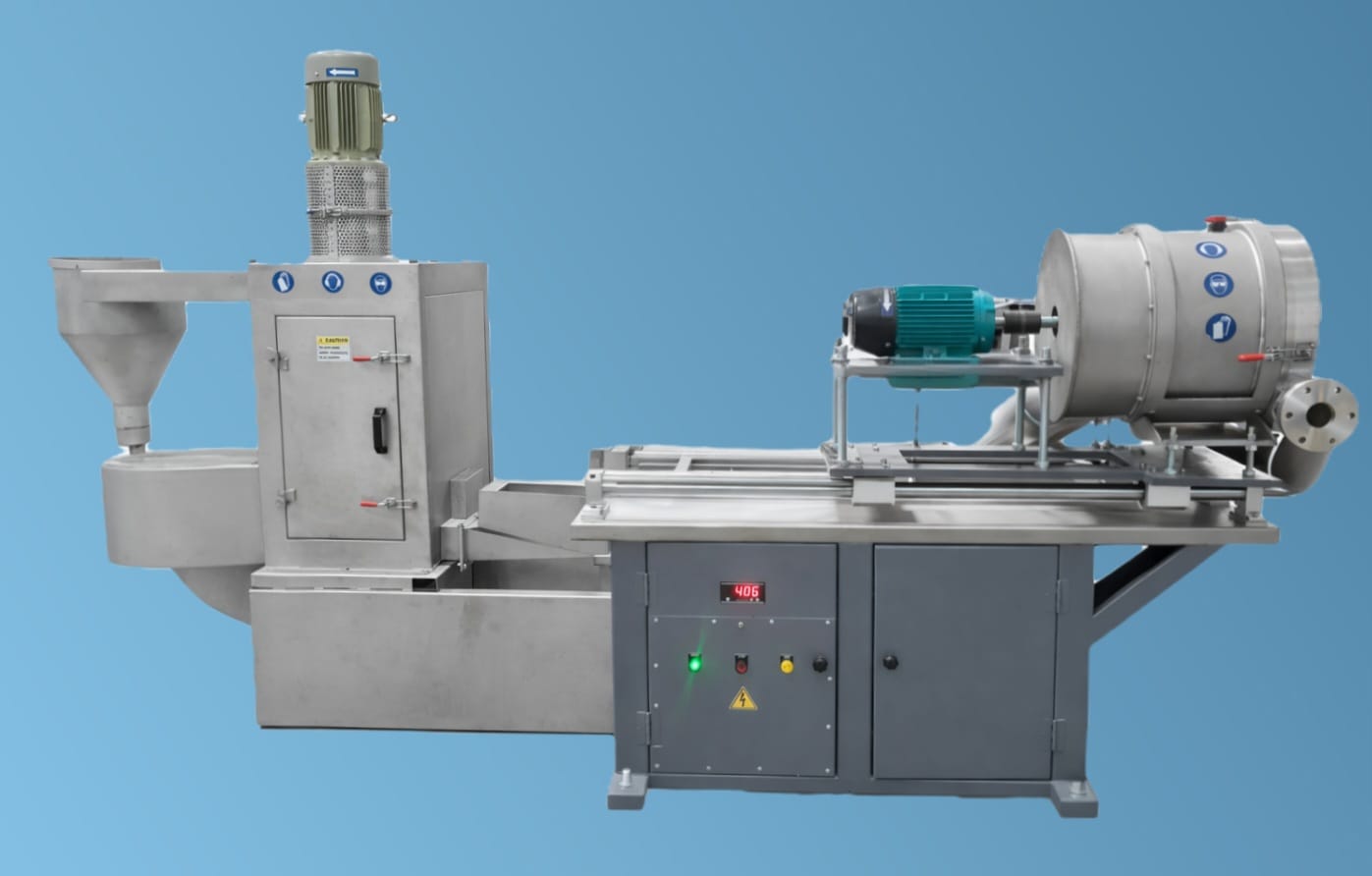

Water Ring Pelletizing System
The watering ring is used in pelletizing systems to provide uniform water flow around molten polymer strands or the die face. It ensures effective cooling, stable cutting, and consistent pellet quality.
The design helps prevent strand sticking, reduces fines, and improves cutter life, making it suitable for strand and underwater pelletizing applications in plastic compounding and recycling lines.
Model
- WRGCM 300
- WRGCM 800
- WRGCM 1500
Extrusion die plate
- Material: 38CrMoAlA with nitrify heat treatment.
- The outgoing hole diameter: 3mm.
- Holes number: 30, 60, 90.
Water ring pelletizer
- Driving power: 3KW.
- RPM controller: AC inverter.
- The cutter shaft is moved by pneumatic.
- With 4 pieces of cutting knives.
- S.S. for cutting hub.
